دوستان برای راه اندازی این مازول یه تعداد عکس میزارم که صد در صد کمکتون میکنه واسه راه اندازیش:
Instruction of wiring
Red thin wire (VCC): Power input+ 3.5-28V (NOTE: If the measuring signal is lower than 28V and have abundant power supply, it can be used as power supply for the module [black wire and yellow wire are contacted together to use])
Black thin wire(GND): Power input- Measurement signal - 3.5-28V
Yellow thin wire (VIN): Measurement signal+ (0-33.00V)
Red thick wire (I+): Current input+ (conncet with the load negative pole )
Black thin wire(I-): Current input- (in series in power supply negative pole )
Voltage current meter with isolated power supply
![برای دیدن سایز بزرگ روی عکس کلیک کنید
نام: 882177440_661.jpg
مشاهده: 271
حجم: 51.6 کیلو بایت](http://forum.arduino.ir/attachment.php?attachmentid=1298&d=1430638601&thumb=1)

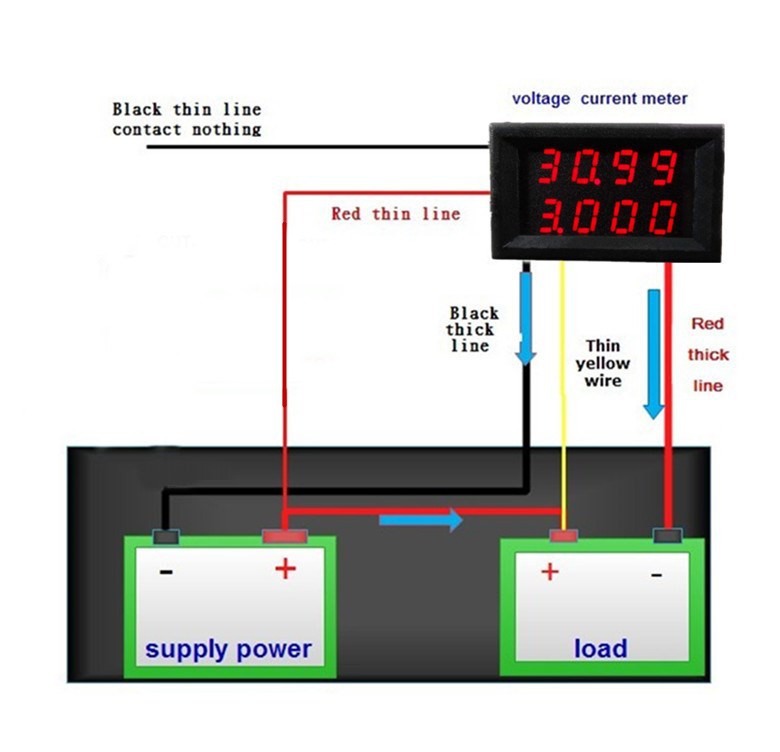

Voltage current meter in the measurement system for power supply
System supply power-1
![برای دیدن سایز بزرگ روی عکس کلیک کنید
نام: 882177424_895.jpg
مشاهده: 229
حجم: 66.4 کیلو بایت](http://forum.arduino.ir/attachment.php?attachmentid=1299&d=1430638665&thumb=1)
System supply power-2
