/* Author = helscream (Omer Ikram ul Haq)
Last edit date = 2014-10-08
Website:
Arduino with MPU6050 and angle calculation – HobbyLogs
Location: Pakistan
Ver: 0.1 beta --- Start
Ver: 0.2 beta --- Bug fixed for calculating "angle_y_accel" and "angle_x_accel" in "Gyro_header.ino" file
*/
#include <Wire.h>
#include "gyro_accel.h"
// Defining constants
#define dt 20 // time difference in milli seconds
#define rad2degree 57.3 // Radian to degree conversion
#define Filter_gain 0.95 // e.g. angle = angle_gyro*Filter_gain + angle_accel*(1-Filter_gain)
// ************************************************** *******************
// Global Variables
// ************************************************** *******************
unsigned long t=0; // Time Variables
float angle_x_gyro=0,angle_y_gyro=0,angle_z_gyro=0,angle _x_accel=0,angle_y_accel=0,angle_z_accel=0,angle_x =0,angle_y=0,angle_z=0;
// ************************************************** *******************
// Main Code
void setup(){
Serial.begin(115200);
Wire.begin();
MPU6050_ResetWake();
MPU6050_SetGains(0,1);// Setting the lows scale
MPU6050_SetDLPF(0); // Setting the DLPF to inf Bandwidth for calibration
MPU6050_OffsetCal();
MPU6050_SetDLPF(6); // Setting the DLPF to lowest Bandwidth
Serial.print("gyro_x_scalled");
Serial.print("\tgyro_y_scalled");
Serial.print("\tgyro_z_scalled");
Serial.print("\taccel_x_scalled");
Serial.print("\taccel_y_scalled");
Serial.print("\taccel_z_scalled");
Serial.print("\tangle_x_gyro");
Serial.print("\tangle_y_gyro");
Serial.print("\tangle_z_gyro");
Serial.print("\tangle_x_accel");
Serial.print("\tangle_y_accel");
Serial.print("\tangle_z_accel");
Serial.print("\tangle_x");
Serial.print("\tangle_y");
Serial.print("\tangle_z");
Serial.println("\tLoad");
t=millis();
}
void loop(){
t=millis();
MPU6050_ReadData();
angle_x_gyro = (gyro_x_scalled*((float)dt/1000)+angle_x);
angle_y_gyro = (gyro_y_scalled*((float)dt/1000)+angle_y);

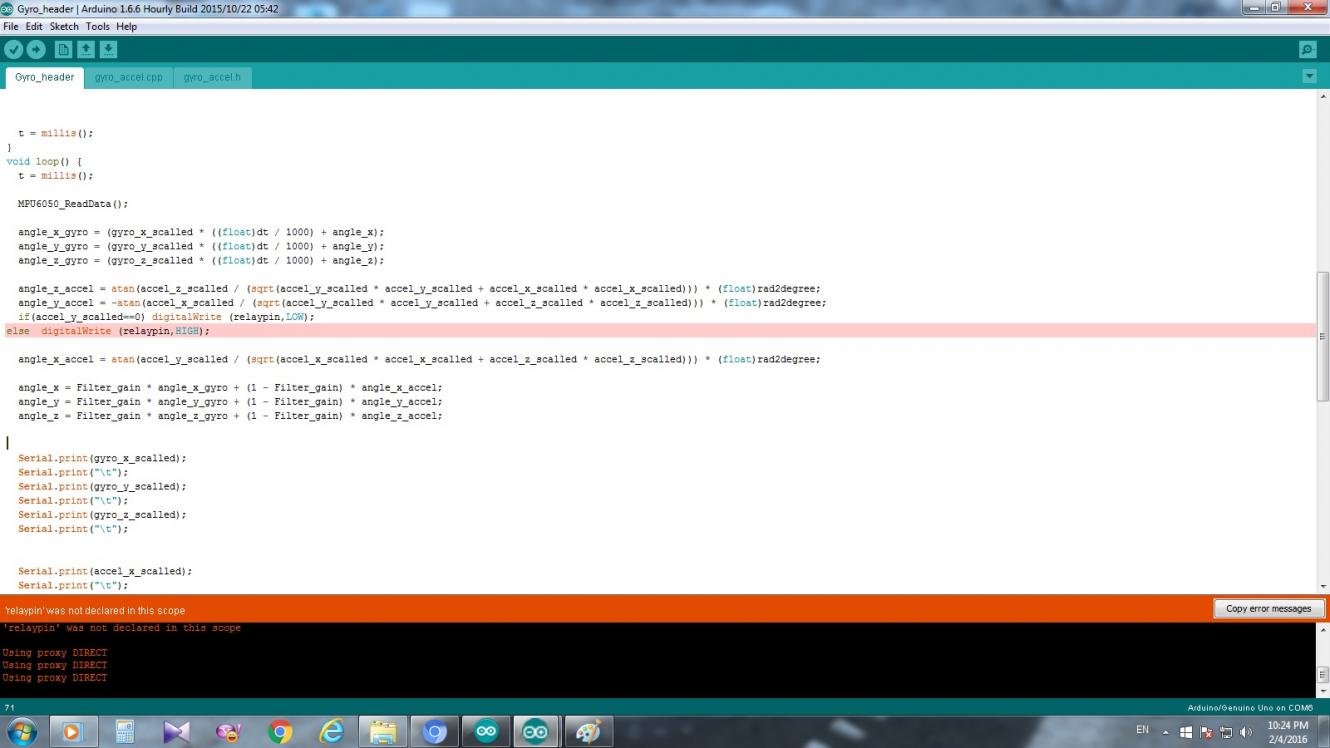

int relaypin=3;
if(accel_y_scalled<90) digitalWrite (relaypin,LOW);
else digitalWrite (relaypin,HIGH);
angle_z_gyro = (gyro_z_scalled*((float)dt/1000)+angle_z);
angle_z_accel = atan(accel_z_scalled/(sqrt(accel_y_scalled*accel_y_scalled+accel_x_scal led*accel_x_scalled)))*(float)rad2degree;
angle_y_accel = -atan(accel_y_scalled/(sqrt(accel_y_scalled*accel_y_scalled+accel_z_scal led*accel_z_scalled)))*(float)rad2degree;
angle_x_accel = atan(accel_x_scalled/(sqrt(accel_x_scalled*accel_x_scalled+accel_z_scal led*accel_z_scalled)))*(float)rad2degree;
angle_x = Filter_gain*angle_x_gyro+(1-Filter_gain)*angle_x_accel;
angle_y = Filter_gain*angle_y_gyro+(1-Filter_gain)*angle_y_accel;
angle_z = Filter_gain*angle_z_gyro+(1-Filter_gain)*angle_z_accel;
Serial.print(gyro_x_scalled);
Serial.print("\t");
Serial.print(gyro_y_scalled);
Serial.print("\t");
Serial.print(gyro_z_scalled);
Serial.print("\t");
Serial.print(accel_x_scalled);
Serial.print("\t");
Serial.print(accel_y_scalled);
Serial.print("\t");
Serial.print(accel_z_scalled);
Serial.print("\t");
Serial.print(angle_x_gyro);
Serial.print("\t");
Serial.print(angle_y_gyro);
Serial.print("\t");
Serial.print(angle_z_gyro);
Serial.print("\t");
Serial.print(angle_x_accel);
Serial.print("\t");
Serial.print(angle_y_accel);
Serial.print("\t");
Serial.print(angle_z_accel);
Serial.print("\t");
Serial.print(angle_x);
Serial.print("\t");
Serial.print(angle_y);
Serial.print("\t");
Serial.print(angle_z);
Serial.print("\t");
Serial.println(((float)(millis()-t)/(float)dt)*100);
while((millis()-t) < dt){ // Making sure the cycle time is equal to dt
// Do nothing
}
}
